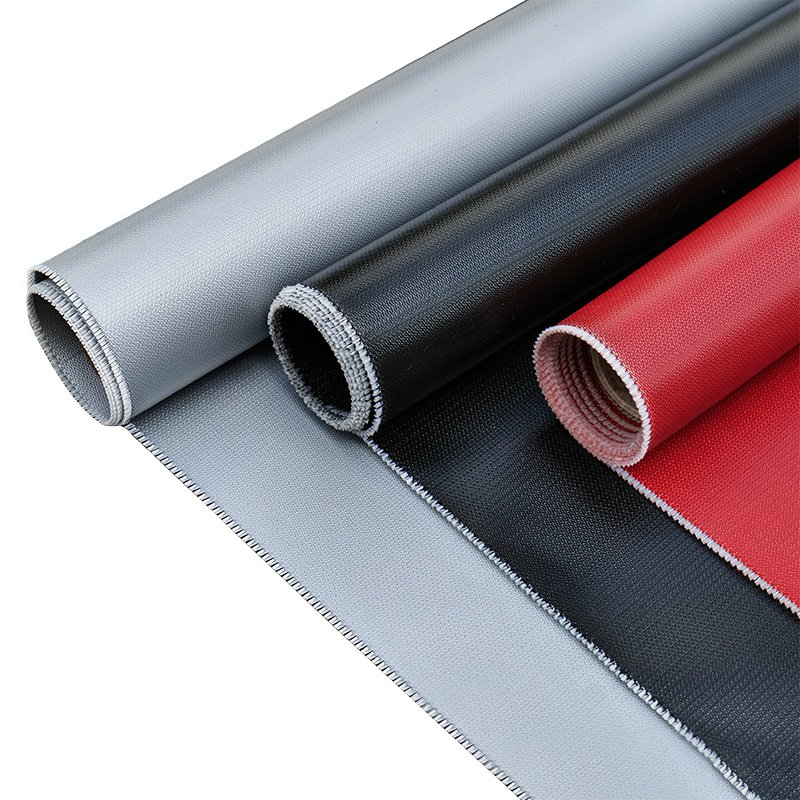

Acrylic Resin Coated Fiberglass Fabrics
- Weather & UV Resistant – Excellent outdoor durability.
- Water Repellent – Protects against moisture.
- Chemical & Oil Resistant – Withstands mild chemicals and oils.
- Abrasion Resistant – Improves surface durability.
- Flexible & Easy Installation – Easy to cut and fabricate.
- Cost-Effective – Reliable performance at an economical price.
- Multiple Colors Available – Options for different applications.
Description
Acrylic Resin Coated Fiberglass Fabric is a durable and economical coated fiberglass material manufactured by applying acrylic resin coating onto high-strength fiberglass fabric. The fiberglass base provides excellent tensile strength, dimensional stability, and heat resistance, while the acrylic coating enhances weather resistance, UV protection, water repellency, and surface durability.
Designed for outdoor and industrial applications, acrylic coated fiberglass fabric offers reliable performance in environments exposed to sunlight, moisture, abrasion, and mild chemicals. With continuous temperature resistance up to 150°C (302°F), this flexible coated fiberglass fabric maintains its mechanical properties while providing easy handling, sewing, cutting, and installation.
Available in various colors, weights, and coating options, Acrylic Resin Coated Fiberglass Fabric is an ideal solution for protective covers, insulation systems, flexible duct connectors, construction membranes, and other applications requiring a balance of performance, durability, and cost efficiency.
| Style No. | Weight | Thickness | Color | Temperature resistance |
| AC205 | 205 g/m² (6.05 oz/yd²) | 0.2 mm (0.08 inch) | Colors can be customized | 150°C(302°F) |
| AC600 | 600 g/m² (17.70 oz/yd²) | 0.6 mm (0.024 inch) | 150°C(302°F) | |
| AC800 | 800 g/m² (23.60 oz/yd²) | 0.8 mm (0.032 inch) | 150°C(302°F) | |
| AC550 | 550 g/m² (16.22 oz/yd²) | 0.45 mm (0.018 inch) | 150°C(302°F) | |
| AC1200 | 1200 g/m² (35.39 oz/yd²) | 1.4 mm (0.055 inch) | 150°C(302°F) | |
| AC720 | 720 g/m² (21.24 oz/yd²) | 0.8 mm (0.032 inch) | 150°C(302°F) | |
| AC500 | 500 g/m² (14.75 oz/yd²) | 0.43 mm (0.017 inch) | 150°C(302°F) |
Other specifications are available on request.
Applications
Acrylic Resin Coated Fiberglass Fabric is widely used in industrial, construction, and outdoor protection applications, including:
- Protective Covers & Tarpaulins – Used for machinery covers, equipment covers, and outdoor protection sheets requiring weather resistance and durability.
- Outdoor Equipment Covers – Provides protection against sunlight, rain, dust, and environmental exposure for industrial equipment.
- Pipe & Cable Wrapping – Acts as a protective outer layer for thermal insulation systems, pipelines, and cable protection applications.
- Flexible Duct Connectors – Used in HVAC and ventilation systems where flexibility, heat resistance, and mechanical strength are required.
- Thermal Insulation Facing – Provides a durable protective facing layer for fiberglass insulation and other thermal insulation materials.
- Roofing & Construction Membranes – Used as reinforcement and protective layers in building and waterproofing applications.
Why Choose Acrylic Resin Coated Fiberglass Fabric?
Acrylic Resin Coated Fiberglass Fabric offers an excellent balance of strength, flexibility, weather resistance, and affordability. Compared with uncoated fiberglass fabrics, the acrylic coating improves handling properties, moisture resistance, and outdoor durability, making it a practical choice for protective and insulation applications requiring dependable performance.
