Graphite Treated Fiberglass Fabric
- Extreme Temperature Resistance – Continuous use up to 800°C (1472°F), short-term up to 1000°C (1832°F)
- Enhanced Abrasion Resistance – Graphite coating improves wear resistance and service life
- Flame Retardant & Non-Combustible – Provides reliable fire protection in high-temperature environments
- High Mechanical Strength – Maintains excellent tensile strength and durability under stress
- Chemical Resistance – Performs well against many industrial chemicals and corrosive conditions
- Thermal Protection – Provides heat reflection, dissipation, and insulation performance
Description

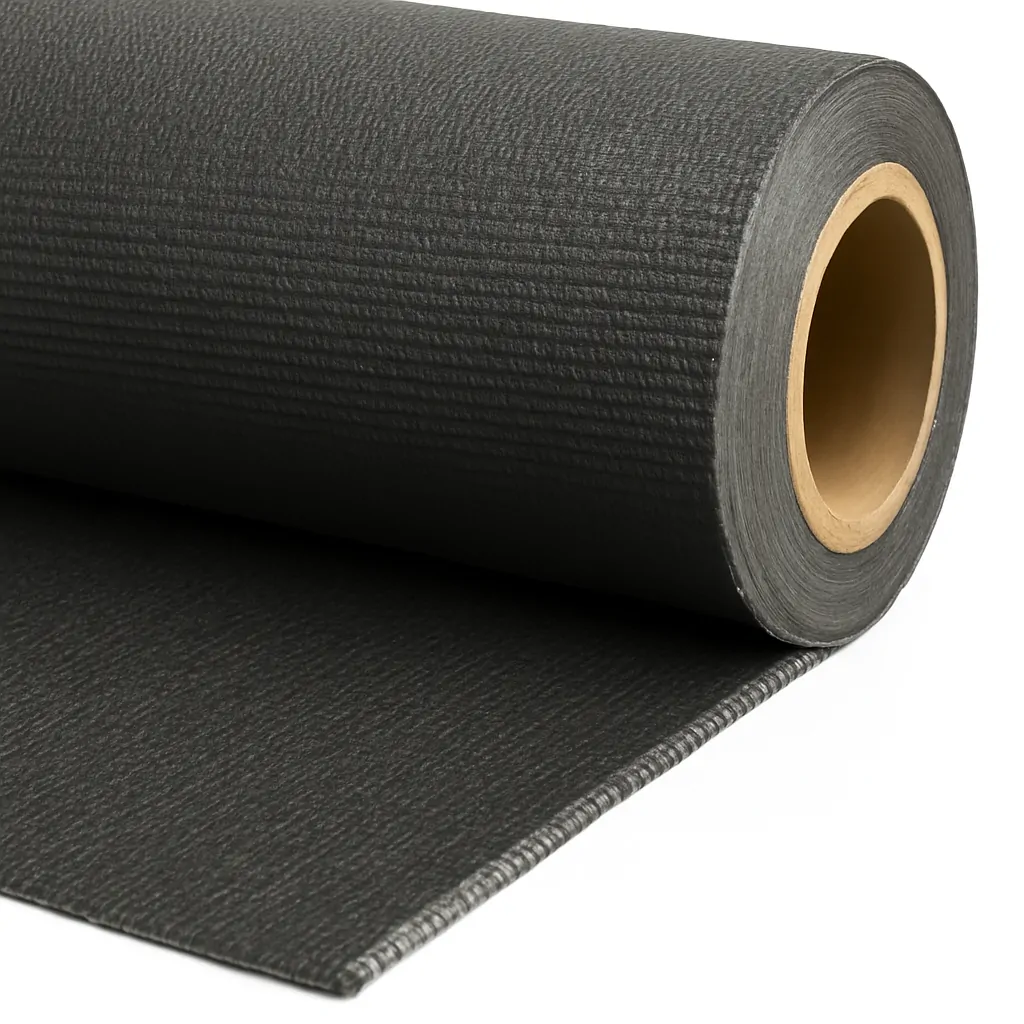

Graphite Treated Fiberglass Fabric is a high-performance heat-resistant fabric made by coating premium fiberglass fabric with a graphite treatment on both sides. The graphite coating enhances the fabric’s temperature resistance, abrasion resistance, flame retardancy, and mechanical durability, allowing it to perform reliably in extreme heat environments.
With excellent resistance to wear, flexing, and thermal stress, graphite coated fiberglass fabric provides long-lasting protection in demanding industrial applications. It is designed for continuous service temperatures up to 800°C (1472°F) and short-term exposure up to 1000°C (1832°F), making it an ideal solution for welding protection, insulation systems, and high-temperature equipment covers.
Specifications
| Style No. | Weight | Thickness | Color | Temperature resistance |
| GT1100 | 1100 g/m² (32 oz/yd²) | 1.5 mm (0.06 inch) | Black | 800°C(1472°F) |
| GT1360 | 1360 g/m² (40 oz/yd²) | 1.7 mm (0.066 inch) | Black | 800°C(1472°F) |
| GT2150 | 2150 g/m² (63 oz/yd²) | 3.0 mm (0.12 inch) | Black | 800°C(1472°F) |
| GT2350 | 2650 g/m² (78 oz/yd²) | 3.2 mm (0.125 inch) | Black | 800°C(1472°F) |
Other specifications are available on request.
Applications
Graphite Treated Fiberglass Fabric is widely used in industries requiring durable thermal protection and heat shielding, including:
- Welding blankets and welding spatter shields
- Removable insulation covers, jackets, mattresses, and pads
- Fire doors and smoke curtains
- Expansion joints and flexible duct connectors
- Foundry splash protection and furnace curtains
- Aerospace, marine, chemical, and power plant insulation systems
Why Choose Graphite Treated Fiberglass Fabric?
Graphite coated fiberglass fabric combines the strength of fiberglass with the protective performance of graphite, providing a durable and versatile solution for high-temperature applications. Its superior resistance to heat, abrasion, and mechanical stress makes it suitable for harsh industrial environments where conventional fiberglass fabrics may not provide sufficient protection.
