Fiberglass Fabric
- Excellent Heat Resistance – Withstands continuous exposure to high temperatures, providing reliable thermal protection and insulation performance.
- Wide Range of Specifications – Available in various weights (70–1820 g/m²), thicknesses (08–1.5 mm), and weave patterns to meet different application requirements.
- High Strength & Durability – Made from E-glass filament yarns, offering excellent tensile strength, dimensional stability, and resistance to wear.
Description

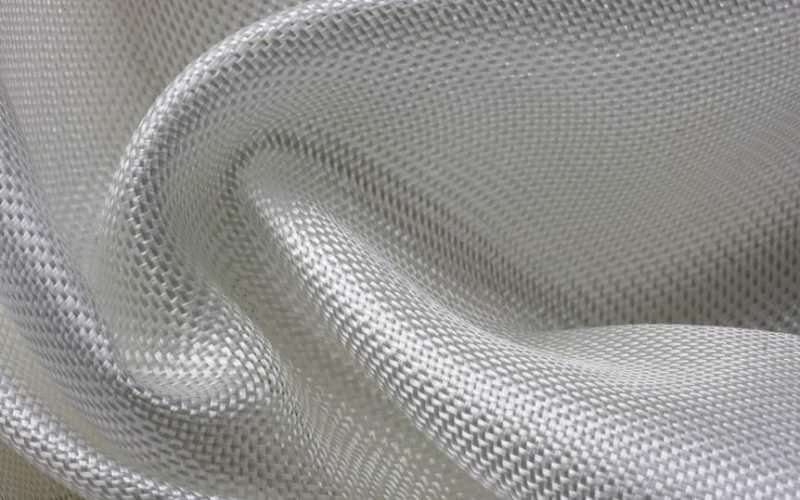

Blaze® Woven Fiberglass Fabric is a high-performance heat resistant textile made from premium E-glass fiberglass yarns. It offers excellent thermal stability, mechanical strength, and durability for demanding industrial applications.
Available in a wide range of weights from 70 g/m² to 2000 g/m², Blaze® fiberglass fabrics can be customized with different weave structures, thicknesses, and surface treatments to meet specific requirements for insulation, fire protection, and composite reinforcement.
Specifications
| Style | Weave Pattern | Weight
(g/m²) |
Thickness
(mm) |
Warp Yarn | Fill Yarn | Count | Finish |
| 2112 | Plain | 70 | 0.08 | ECE225 1/0 | ECE225 1/0 | 40×40 | Amino Silane |
| 2116 | Plain | 106 | 0.09 | ECE225 1/0 | ECE225 1/0 | 60×60 | Amino Silane |
| 7628 | Plain | 200 | 0.20 | ECG150 2/1 | ECG150 2/1 | 17×12 | Amino Silane |
| 7638 | Plain | 255 | 0.24 | ECG75 1/0 | ECG37 1/0 | 44×26 | Amino Silane |
| 7532 | Plain | 260 | 0.25 | ECG75 1/3 | ECG75 1/3 | 16×14 | Silane |
| 3732 | 3×1 Twill | 430 | 0.43 | ECG75 1/2 | ECG75 1/2 | 48×32 | Heat Cleaning |
| 3783 | 8H Satin | 560 | 0.40 | ECG37 1/0 | ECG37 1/0 | 54×38 | Heat Cleaning |
| 3784 | 8H Satin | 870 | 0.75 | ECG37 1/2 | ECG37 1/2 | 44×35 | Heat Cleaning |
| 3788 | 8H Satin | 1820 | 1.50 | ECG37 1/4 | ECG37 1/4 | 42×35 | Heat Cleaning |
General Specifications
- Material: E-glass Fiberglass
- Weave Structure: Plain, 3×1 Twill, 8H Satin
- Weight Range: 70–1820 g/m²
- Thickness Range: 0.08–1.50 mm
- Yarn Type: ECE / ECG Series Fiberglass Yarn
- Finish Options: Amino Silane, Silane, Heat Cleaning
- Customization: Available according to customer requirements
Applications
Blaze® Woven Fiberglass Fabric is widely used for applications requiring high temperature resistance, fire protection, and thermal insulation, including:
- Welding blankets and welding curtains
- Fire protection covers and shields
- High temperature insulation jackets
- Removable insulation covers
- Pipe and equipment insulation
- Thermal barriers and heat shields
- Automotive and aerospace insulation
- Composite reinforcement materials
- Electrical insulation applications
